High Speed Radiator Fin Rolling Machine 0-100M/Min 25mm Width

Name: High Speed Radiator Fin Rolling Machine 0-100M/Min 25mm Width
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 19.00 USD
Availability: InStock

Nome da marca:	WONDERY
MOQ:	1
preço:	$16,500-23,000

Informações Detalhadas

Descrição do produto

Informações Detalhadas

Lugar de origem:

Jiangsu, China

Peso:

500 kg

Espessura da folha da barbatana:

0,08 mm

largura da aleta:

25mm

Pressão pneumática:

0,6MPa

Material de folha de barbatana:

A3103 H14

Vida na unidade de rolamento de barbatana:

200.000.000 de cristas de barraca

Velocidade de trabalho:

0-100m/minuto

Altura da barbatana:

10 ± 0,05 mm

Arremesso de fin:

6mm

Espessura da tira de alumínio:

0,1 mm

Largura de abertura:

1mm

Forma das barbatanas:

Você forma

Fin R Curva:

0,5

Fonte de energia:

3-fase, 415V, 50Hz

Poder total:

4.5kW

Destacar:

high speed radiator fin rolling machine

radiator fin machine 100M min

25mm width radiator fin roller

Descrição do produto

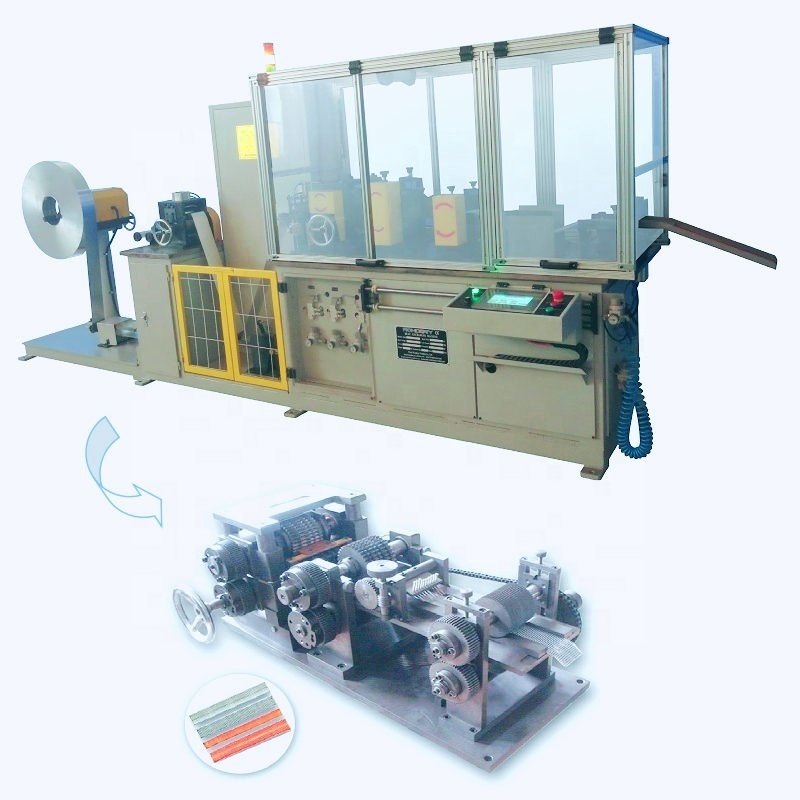

High Speed Car Radiator Aluminum Fin Making Machine

This high-performance machine is designed for producing heat exchange wavy fins with or without windows for car radiators. Equipped with advanced PLC, inverter, and AC servo control systems, it offers precise fin formation with touch screen parameter adjustment.

Key Features

Complete system including decoiler, tensioning device, feeding mechanism
Interval oil lubrication system for smooth operation
Advanced fin forming, correction and cutting functions
Strip run-out detection and blockage detection systems
Cutting fault indicator and overload protection
PLC, inverter, and AC servo control with touch screen interface

Fin Forming Roller Technical Parameters

Parameter	Specification
Fin width	25mm (Max width: 100mm)
Fin height	10 ±0.05mm
Fin pitch	6mm
Aluminum strip thickness	0.1mm
Opening width	1mm
Fin shape	U shape
Fin R curve	0.5
Aluminum strip material	A3103 H14
Fin tooling blade material	Cobalt-containing high speed steel forged parts
Fin tooling blade service life	≥250 million fin convolutions for pure Aluminum strip

Machine Technical Parameters

Parameter	Specification
Aluminum strip coil size	Inner diameter: φ200±20mm (adjustable); Outer diameter: ≤1500mm
Fin forming capacity	Feeding speed: 0-100m/min; 1000-4000 fin convolutions per minute
Cutting capacity	Max 60 times/min
Cutting accuracy	±0 fin; cut at the crest
Power supply	3-phase, 415V, 50Hz; Total power: 4.5KW
Air source requirement	Air pressure >0.4Mp, Q>0.1m3/min, dry and cool compressed air
Equipment weight	~1600Kg
Equipment size	3500×900×1800mm

Machine Components

Magnetic powder brake: Controls decoiling speed with resistance force
Decoiler: Adjustable coil tray with emergency stop capability
Feeding system: Automatic speed matching with fin forming unit
Fin lubrication device: Oil film application for strip protection
Fin forming unit: Inverter motor-driven precision forming
Separation device: Prevents strip blockage
Fin pitch correction: 2-grade adjustment for precise pitch
Blockage detection: Automatic shutdown protection
Cutting system: Servo-controlled precision cutting

Additional Images

Manufacturer Information

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines specializing in equipment for automotive, HVAC, and power generation industries. Established in 2008, we offer comprehensive services including technical consultation, installation, training, and maintenance.

Frequently Asked Questions

What is the power supply of the heat exchanger making machines?

The power supply can be adjusted to match customer requirements through a transformer or direct voltage matching.

What information is needed for an accurate quotation?

Please provide technical requirements, drawings, pictures, industrial voltage, and planned output.

What are the payment terms?

40% down payment, 60% before delivery (T/T mode).

What is the delivery time?

30-60 days after receipt of down payment.
