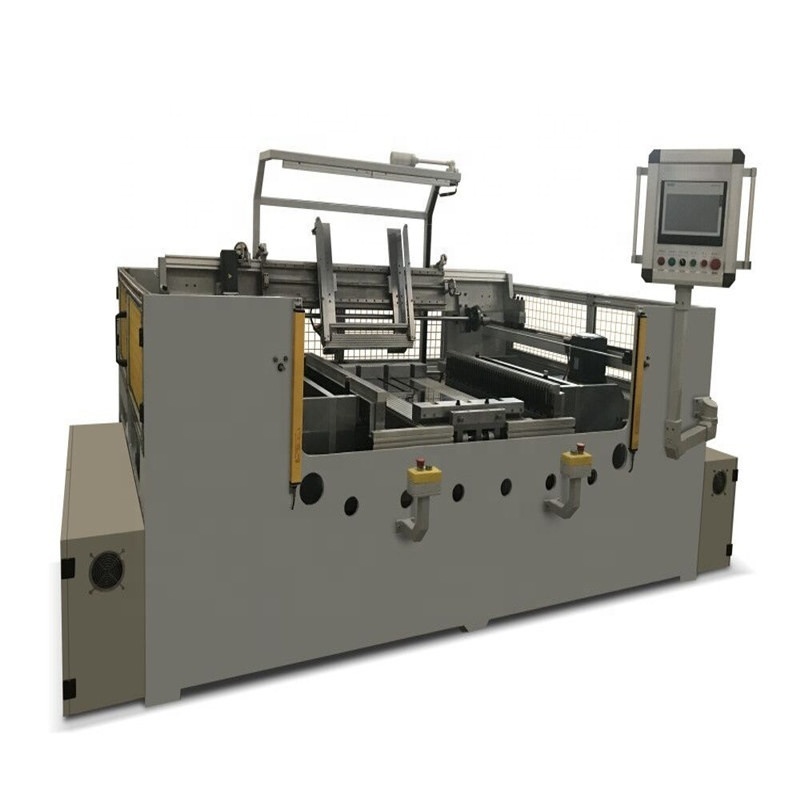

Semi-Automatic Condenser Making Machine 2200kg for Auto Production

Name: Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 60 USD
Availability: InStock

Nome da marca:	WONDERY
MOQ:	1
preço:	$60,000

Informações Detalhadas

Descrição do produto

Informações Detalhadas

Lugar de origem:

China

Peso:

2200kg

Altura do núcleo:

350-780mm

Largura do núcleo:

200-680 mm

Camadas de tubo plano:

1 camada

Modo de colocação do tubo:

manual

Modo de posicionamento da barbatana:

Por bandeja /manual da barbatana

Capacidade de produção:

40 grupos/hora

Modo de unidade:

Pneumático

Dimensão geral:

2200*1800*1800mm

Pressão pneumática:

0,6MPa

Tamanho do núcleo:

780*680mm

Tempo de montagem:

2,5 minutos/núcleo

Componentes principais:

Motor

Componentes elétricos:

Schneider, Omron, Chint

Processo de acompanhamento:

Processo de brasagem

Destacar:

semi-automatic condenser making machine

2200kg radiator fin machine

auto production condenser machine

Descrição do produto

Semi-automatic Auto Parallel Flow Core Condenser Assembly Machine

The semi-automatic parallel flow core condenser making machine is designed for assembling auto parallel flow condensers with precision and efficiency.

Product Application

This condenser core builder machine assembles parallel flow condensers with stable performance, easy operation, and low noise. It ensures accurate flat tube positioning and even fin distribution, resulting in cores with high assembly accuracy and excellent appearance for optimal brazing results.

Technical Specifications

Parameter	Specification
Core height direction	350-780mm
Core width direction	200-680mm
Flat Tube Layers	1 layer
Tube Laying Mode	Manual
Fin Laying Mode	By fin tray / Manual
Production Capacity	Around 40 sets/hour
Drive Mode	Pneumatic
Overall Dimension	2200×1800×1800mm
Weight	2200kg

Key Advantages

Servo tube distribution device ensures precise flat tube positioning with comb teeth structure
Dual push-button safety operation design
Easy operation, adjustment, and tooling replacement
Hydraulic cylinder-controlled push and clamping mechanisms
Optional header flaring mechanism available

Detailed Images

Tube Distribution Silo

The machine can be equipped with a tube distribution silo to enhance operational efficiency.

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines specializing in equipment for automotive, HVAC, and heavy industries. Established in 2008, we offer comprehensive solutions including:

Radiator making machines
Aluminum fin machines
Brazing furnaces
Tube processing equipment
Custom non-standard machines

We export worldwide and provide full technical support including installation, training, and maintenance services.

Frequently Asked Questions

1. What is the power supply requirement for the heat exchanger making machines?

The power supply can be adjusted to match customer requirements through transformers or direct voltage matching.

2. What information is needed for an accurate quotation?

Please provide technical requirements, drawings, pictures, industrial voltage specifications, and planned production output.

3. What are the payment terms?

40% down payment, 60% balance before delivery (T/T transfer).

4. What is the typical delivery time?

30-60 days after receiving the down payment.
